Types of Weaving Looms and Their Unique Features

Weaving, an ancient art form dating back thousands of years, has been a significant part of various cultures across the globe. At its core, weaving is the process of interlacing two sets of yarns, the warp and the weft, to create a fabric. A crucial tool in this process is the weaving loom. There are several types of looms, each with their unique features, benefits, and limitations. In this article, we will explore the different types of weaving looms, how they work, and their significance in the world of textiles.

Hand Looms

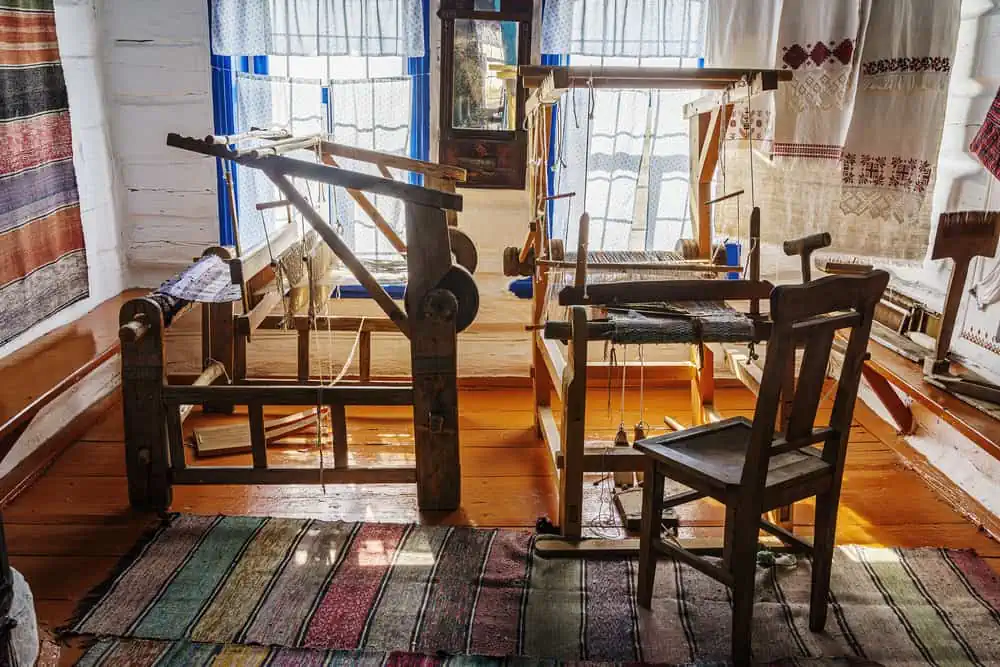

Old hand loom

Hand looms are the simplest and most ancient form of looms. They are operated manually and require no external power source. Hand looms can be further categorized into several types, including:

Frame Looms

Also known as the tapestry loom, frame looms are the most basic type of weaving loom. They consist of a wooden frame holding the warp yarns in tension. Weavers create the weft by manually passing yarn over and under the warp.

Backstrap Looms

A backstrap loom is a portable, lightweight loom that is easy to assemble and disassemble. The weaver ties one end of the loom to their waist and the other end to a stationary object. The tension of the warp is maintained by the weaver’s body movements.

Inkle Looms

Inkle looms are small, portable looms used to create narrow, warp-faced bands. They are perfect for creating belts, straps, or decorative trims.

Floor Looms

Floor looms are larger, more complex looms that stand on the floor and are operated using foot pedals called treadles. There are several types of floor looms, including:

Jack Looms

Jack looms are versatile and ideal for weaving a variety of patterns. They have individual shafts that can be raised and lowered independently, allowing for complex patterns and designs.

Counterbalance Looms

Counterbalance looms use a system of pulleys and weights to create the shed, the space between the warp threads through which the weft passes. This type of loom is ideal for weaving balanced weaves, where the warp and weft have the same prominence.

Countermarch Looms

Countermarch looms use a system of pulleys and levers to control the movement of shafts, ensuring that each shaft can be raised or lowered independently. This allows for more control over the weaving process, enabling intricate patterns and even tension.

Table Looms

Table looms are smaller, more portable versions of floor looms that sit on a table. They typically have fewer shafts than floor looms, but they can still produce a wide variety of patterns. Table looms are perfect for beginners, as they are easy to set up and operate.

Rigid Heddle Looms

Rigid heddle looms are a type of hand loom that features a rigid heddle, a plastic or wooden device with slots and holes that hold the warp threads in place. The rigid heddle simplifies the weaving process by allowing the weaver to create the shed by simply raising or lowering the heddle. Rigid heddle looms are suitable for beginners and can be used for a variety of projects, including scarves, placemats, and dish towels.

Computerized Looms

Computerized looms, also known as electronic or digital looms, use advanced technology to control the weaving process. These looms are equipped with microprocessors that store weaving patterns and control the movement of the shafts, allowing for intricate and complex designs. Computerized looms can be floor or table looms and offer several advantages, such as increased speed, precision, and the ability to save and reproduce patterns.

Jacquard Looms

Jacquard looms are a specialized type of loom that use an intricate system of punched cards or digital technology to control the movement of individual warp threads, enabling the creation of highly detailed and intricate patterns. Invented by Joseph Marie Jacquard in 1804, the Jacquard loom revolutionized the textile industry by automating the production of elaborate fabrics, such as brocade and damask. Today, modern Jacquard looms use computer technology to control the warp threads, allowing for even greater design possibilities.

Circular Looms

Circular looms, also known as round or knitting looms, are a type of hand loom designed for creating circular or tubular fabrics. They consist of a circular frame with pegs or slots that hold the yarn in place. The weaver wraps the yarn around the pegs and uses a hook or a loom pick to pull the yarn through the loops, creating a circular fabric. Circular looms are commonly used for knitting hats, socks, and bags.

Tapestry Looms

Tapestry looms, also known as vertical looms or high-warp looms, are a type of hand loom designed specifically for weaving tapestries. They consist of a vertical frame that holds the warp threads under high tension, allowing the weaver to create detailed and intricate designs. Tapestry looms can be small and portable for smaller projects or large and stationary for more significant works of art.

Narrow Fabric Looms

Narrow fabric looms, also known as ribbon or band looms, are specifically designed for weaving narrow fabrics, such as ribbons, trimmings, and bands. These looms are commonly used in the production of clothing, accessories, and home furnishings. They can be hand-operated, such as the inkle loom, or machine-powered for faster production rates.

Navajo Looms

Navajo looms, also known as upright or warp-weighted looms, are a type of hand loom used by the Navajo people in the Southwestern United States. These looms have a simple, vertical frame that holds the warp threads under tension using weights, typically stones or clay. The weaver sits on the ground and uses a batten or forked stick to manipulate the weft threads, creating the traditional Navajo rugs and blankets.

Oaxacan Looms

Oaxacan looms, also known as pedal looms or foot-tension looms, are a type of floor loom used by the Zapotec people in Oaxaca, Mexico. These looms are constructed of wood and feature a unique foot-tensioning system that allows the weaver to control the tension of the warp threads using their feet. Oaxacan looms are used to create the vibrant and intricate handwoven textiles that the region is known for.

Pit Looms

Pit looms are a type of floor loom that is partially sunk into the ground, with the weaver sitting at ground level. The pit provides space for the lower part of the loom, such as the treadles and the lower beam, while the upper part of the loom remains above ground. Pit looms are commonly used in traditional weaving communities in India, Bangladesh, and other parts of South Asia to create a variety of handwoven fabrics, such as silk and cotton.

Warp Knitting Looms

Warp knitting looms, also known as knitting machines, are a type of loom that combines elements of both weaving and knitting to create a fabric. These looms use needles to interlock the loops of yarn, creating a fabric with an open, mesh-like structure. Warp knitting looms can be hand-operated or fully automated, and they are commonly used in the production of lace, netting, and other openwork fabrics.

Sprang Looms

Sprang looms are a type of hand loom used to create an elastic, interlinking network of warp threads without using a weft. The sprang technique involves twisting the warp threads around one another to create a springy, stretchable fabric. Sprang looms typically consist of a simple frame that holds the warp threads in tension, and the weaver uses their fingers or a tool to manipulate the threads. Sprang has been used for centuries to create hairnets, bags, and other items that require elasticity.

Box Looms

Box looms, also known as drawlooms or pattern looms, are a type of floor loom that features a secondary set of harnesses, known as the pattern harnesses, which control the movement of individual warp threads. This allows the weaver to create intricate patterns and designs that are not possible with other types of looms. Box looms were widely used in Europe during the Middle Ages and the Renaissance for weaving intricate brocades and other luxury fabrics.

Charkha Looms

Charkha looms, also known as spinning wheels, are not technically looms but rather tools used to spin fibers into yarn or thread before weaving. The charkha loom is an essential part of the weaving process, as it enables the weaver to produce high-quality, consistent yarns for their projects. Charkha looms can be hand-operated, such as the traditional Indian charkha used by Mahatma Gandhi, or mechanized, like the spinning mule used during the Industrial Revolution.

Paddle Looms

Paddle looms, also known as mat looms or mat-weaving looms, are a type of hand loom used to create mats, screens, and other flat, flexible objects. Paddle looms consist of a simple frame that holds the warp threads in tension, and the weaver uses a paddle or comb-like tool to manipulate the weft threads. Paddle looms are used in many traditional weaving communities, particularly in Southeast Asia and the Pacific Islands, to create woven mats, screens, and other essential household items.

Each type of weaving loom has its unique characteristics, advantages, and challenges. As a weaver, it is essential to familiarize yourself with the various types of looms available and consider your specific needs and goals when selecting the most suitable loom for your projects. The rich history and diversity of weaving looms demonstrate the enduring significance and adaptability of this ancient craft.
